Segmental dies use multiple forming segments assembled inside a supporting case. Together, the segments create the required working cavity.Segmental square dies form square profiles, while customized segmental dies accommodate other drawing-specific shapes. Both are used in cold heading and fastener forming.
Segmental Square Dies & Customized Segmental Dies

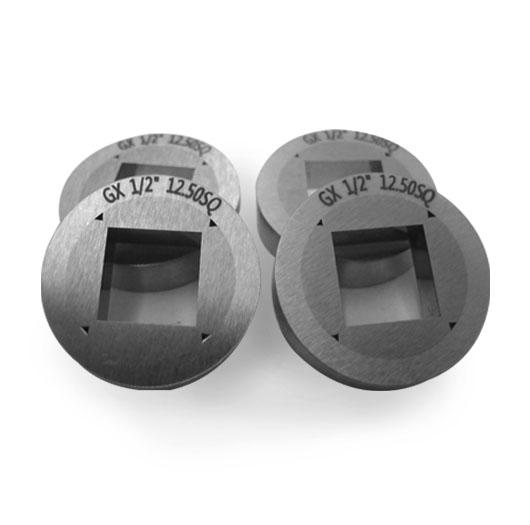

What Is a Segmental Square Die?
A segmental square die is a forming tool with separate working segments arranged to create a square cavity.
It forms square features, such as heads, necks or body sections, according to the tooling design.
Main functions:
-
Form the specified square profile.
-
Control across-flat dimensions and corner radii.
-
Support material flow during forming.
-
Help maintain consistent part geometry.
What Is a Customized Segmental Die?
A customized segmental die is a multi-piece forming tool designed for a specific part and production process.
The segment arrangement, cavity profile and supporting case are developed according to the component drawing and forming requirements.
Main functions:
-
Form special or non-round profiles.
-
Provide a segmented construction for the required cavity.
-
Support the workpiece under forming pressure.
-
Fit the specified machine and tooling assembly.
Materials and Construction
| Component | Typical Material | Function |
|---|---|---|
| Forming segments | Cemented tungsten carbide, commonly with a cobalt binder | Provides wear resistance and compressive strength |
| Supporting case | Heat-treated alloy steel or tool steel | Holds and supports the segments |
Carbide grade selection depends on wire material, forming load and profile geometry. Accurate segment fit and suitable case support are essential for reliable operation.
Custom Options and Applications
Custom options:
-

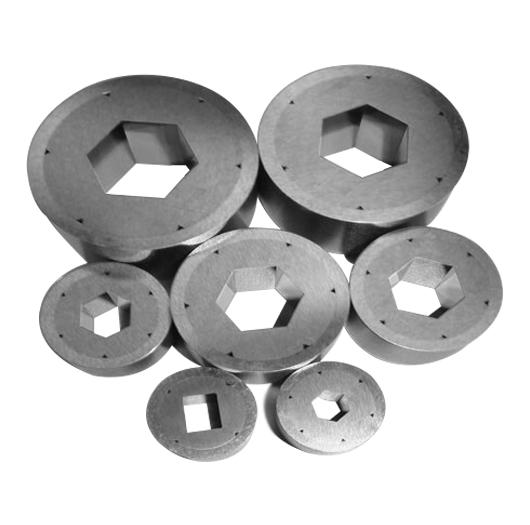

Square, hexagonal and special profiles.
-
Drawing-defined dimensions and corner radii.
-
Segment quantity and arrangement.
-
Machine-specific case dimensions.
-
Required tolerances and surface finishes.
Typical applications:
-
Square-head and square-neck fasteners.
-
Non-round bolt features.
-
Special cold-formed metal components.
Information Required for a Quote
Please provide:
-
Finished-part and tooling drawings.
-
Profile dimensions, corner radii and tolerances.
-
Wire material and diameter.
-
Machine model and die case dimensions.
-
Forming stage and reference samples, if available.
FAQ
How does a segmental die differ from a one-piece die?
A segmental die uses multiple working pieces to create the cavity. A one-piece die uses a single working insert.
Does a segmental die open during each forming cycle?
Not necessarily. Many segmental dies remain fixed inside the case during production. Opening and ejection depend on the tooling design.
Can individual segments be replaced?
Replacement may be possible, depending on the design. Segment condition, matching accuracy and case fit must be reviewed before reuse.
Why use tungsten carbide segments?
Tungsten carbide provides high wear resistance and compressive strength, helping maintain the forming profile during repeated production.

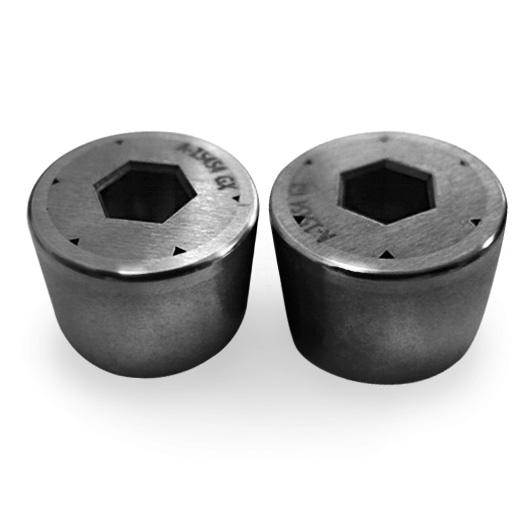

Can profiles other than square be produced?
Yes. Hexagonal and special profiles can be reviewed according to the part drawing and forming process.
What affects die service life?
Carbide grade, segment fit, case support, lubrication, machine alignment and forming load all affect service life.
Request a Quote
Send your drawings and production requirements for a review of the segment design, material and tooling dimensions.
