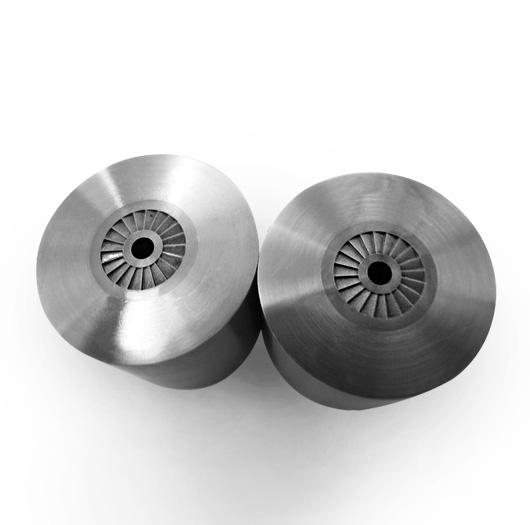

Lock Serration Die,Customized Carbide Die

GXP Click here

Lock serration dies form teeth that help improve grip and resist rotation. Customized carbide dies produce specific shapes and dimensions based on part drawings and machine requirements.

Lock Serration Die & Customized Carbide Die

Lock serration dies and customized carbide dies are precision tools for cold forming screws, bolts and special fasteners.

What Is a Lock Serration Die?

A lock serration die forms locking teeth, commonly beneath a screw or bolt head or flange.

Main functions:

  • Form the required serration pattern.

  • Control tooth spacing, depth and angle.

  • Produce features that help resist fastener rotation.

Locking performance depends on the serration design, mating material and installation conditions.

What Is a Customized Carbide Die?

A customized carbide die is a forming tool made for a specific part or production process. It typically combines a tungsten carbide insert with a supporting steel case.

Main functions:

  • Form custom bores, profiles and cavities.

  • Control material flow during heading or extrusion.

  • Maintain consistent part dimensions.

A lock serration die can also be a customized carbide die.

Materials and Construction

Component Typical Material Function
Working insert Cemented tungsten carbide, commonly with a cobalt binder Provides wear resistance and compressive strength
Die case Heat-treated alloy steel or tool steel Holds and supports the insert

Carbide grade selection depends on the workpiece material, forming load and tool geometry. The correct grade balances wear resistance and toughness.

Custom Options and Applications

Custom options include serration patterns, straight or stepped bores, special cavities and machine-specific case dimensions.

Typical applications include:

  • Serrated flange screws and bolts.

  • Fasteners with under-head locking teeth.

  • Screw and bolt blank forming.

  • Cold extrusion and special-profile forming.

Information Required for a Quote

Please provide:

  • Part and tooling drawings.

  • Wire material and diameter.

  • Machine model and die case dimensions.

  • Serration details and required tolerances.

  • Reference samples, if available.

FAQ

What is the difference between the two dies?

A lock serration die forms locking teeth. A customized carbide die is made for a specific forming application and may include serrations.

Why use tungsten carbide?

Tungsten carbide offers high wear resistance and compressive strength, helping the die maintain its working profile.

Can the serration pattern be customized?

Yes. Tooth count, spacing, angle and depth can be reviewed according to your drawings.

Do serrations prevent all loosening?

Serrations can help resist rotation. Actual performance depends on the joint design, mating surface and installation conditions.

What affects die service life?

Material grade, die design, lubrication, machine alignment and forming load all affect service life.

Request a Quote

Send your drawings and production requirements for a review of the die design and material.
