CSK Head Heading Die, Carbide Punch Die, Carbide Tool

GXP Click here

CSK head heading dies, carbide punch dies and carbide tools are used to form screws and other fasteners during cold heading.
Each tool performs a specific forming or supporting function. Tool geometry and material are selected according to the part drawing, wire material and machine requirements.

CSK Head Heading Die, Carbide Punch Die & Carbide Tools

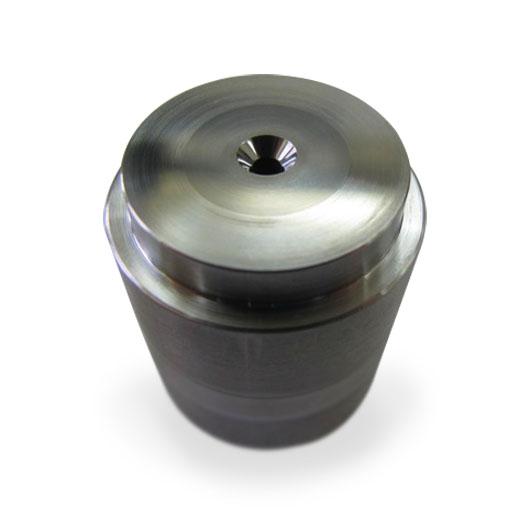

A CSK head heading die is used in the production of countersunk-head screws. “CSK” means countersunk, a head design intended to sit flush with a matching countersunk surface.

The main die controls the screw body, while the die-and-punch combination forms the required head geometry.

Main functions:

  • Hold and support the screw blank.

  • Control body dimensions.

  • Support the specified countersunk head profile.

  • Guide material flow during forming.

Head angle and dimensions must follow the applicable standard or drawing.

What Is a Carbide Punch Die?

A carbide punch die is a carbide forming component used in a punch assembly. Depending on the tooling design, its cavity receives and shapes the end of the wire blank during heading.

Main functions:

  • Form the specified end or preform profile.

  • Control material flow during upsetting.

  • Provide a wear-resistant forming surface.

  • Prepare the blank for the next forming stage.

Please provide an assembly drawing to confirm the component’s position and function.

What Is a Carbide Tool?

A carbide tool is a broad term for tooling made entirely or partly from cemented carbide.

In fastener production, carbide tools include heading die inserts, punch dies, forming punches and extrusion components.

Main functions:

  • Shape or support the workpiece.

  • Resist wear under repeated forming.

  • Maintain critical working dimensions.

Materials and Construction

Component Typical Material Function
Working insert or forming component Cemented tungsten carbide, commonly with a cobalt binder Provides wear resistance and compressive strength
Case or holder Heat-treated alloy steel or tool steel Supports and positions the carbide component

Carbide grade selection depends on wire hardness, forming load and tool geometry. The appropriate grade balances wear resistance and toughness.

Custom Tooling Options

  • Countersunk head profiles and angles.

  • Straight or stepped bores.

  • Punch die cavities and preform profiles.

  • Machine-specific case dimensions.

  • Drawing-defined tolerances and surface finishes.

Information Required for a Quote

Please provide:

  • Finished screw and tooling drawings.

  • Head angle, screw size and length.

  • Wire material and diameter.

  • Machine model and tool dimensions.

  • Reference samples, if available.

FAQ

What does CSK mean?

CSK means countersunk. The screw head is designed to fit into a matching recess for a flush finish.

Does the heading die form the complete screw head?

The head is formed by the combined die-and-punch arrangement. The main die primarily controls and supports the screw body.

Is a carbide punch die the same as a recess punch?

Not necessarily. A punch die may form a preform or other profile. A recess punch specifically forms the drive recess.

Why use tungsten carbide?

Tungsten carbide offers high wear resistance and compressive strength, helping maintain the working profile during repeated forming.

Can the tooling be customized?

Yes. Profiles, dimensions and material grades can be reviewed according to your drawings and production requirements.

What affects tool service life?

Material grade, tool support, lubrication, wire condition, machine alignment and forming load all affect service life.

Request a Quote

Send your drawings and production requirements for a review of the tooling design and material.
